Description

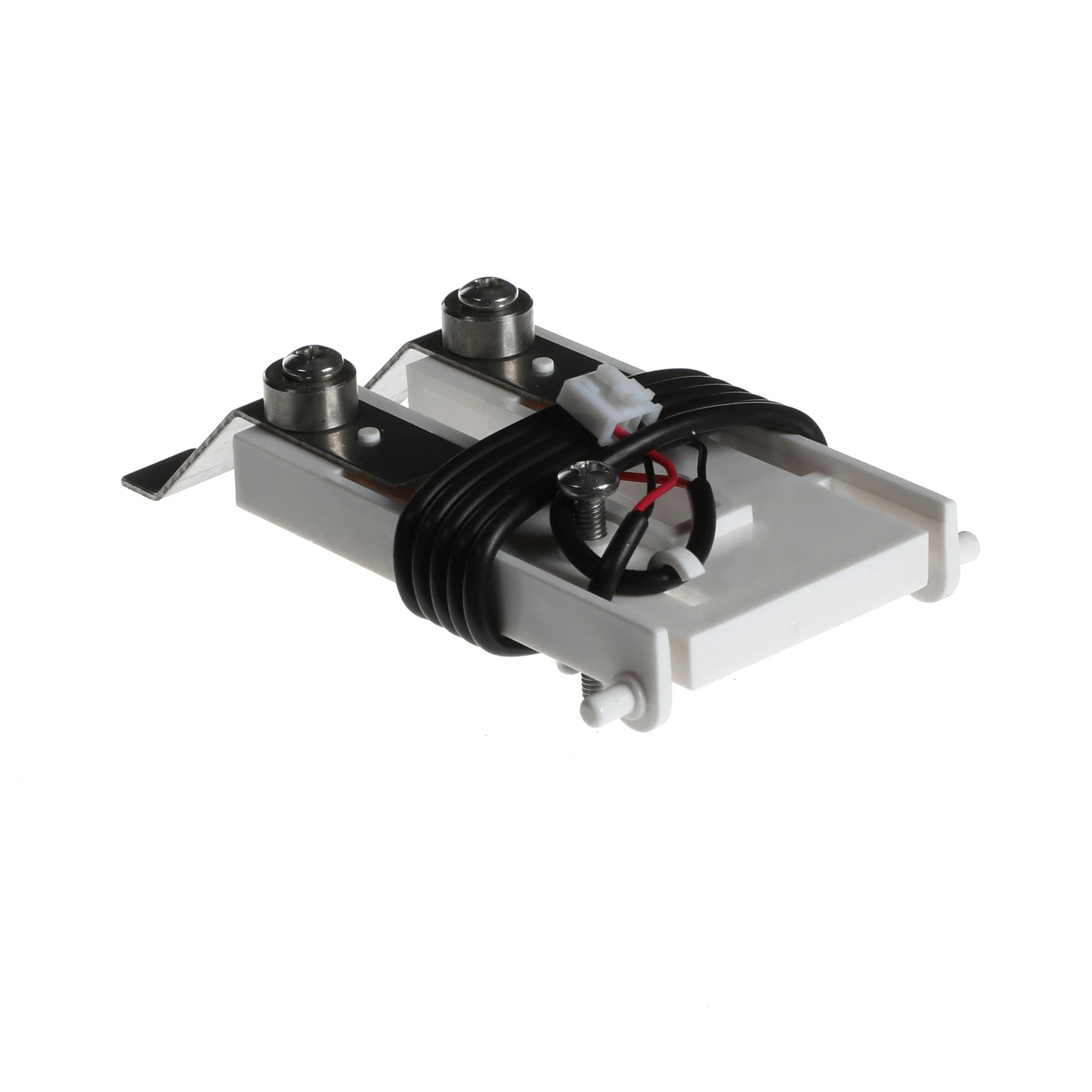

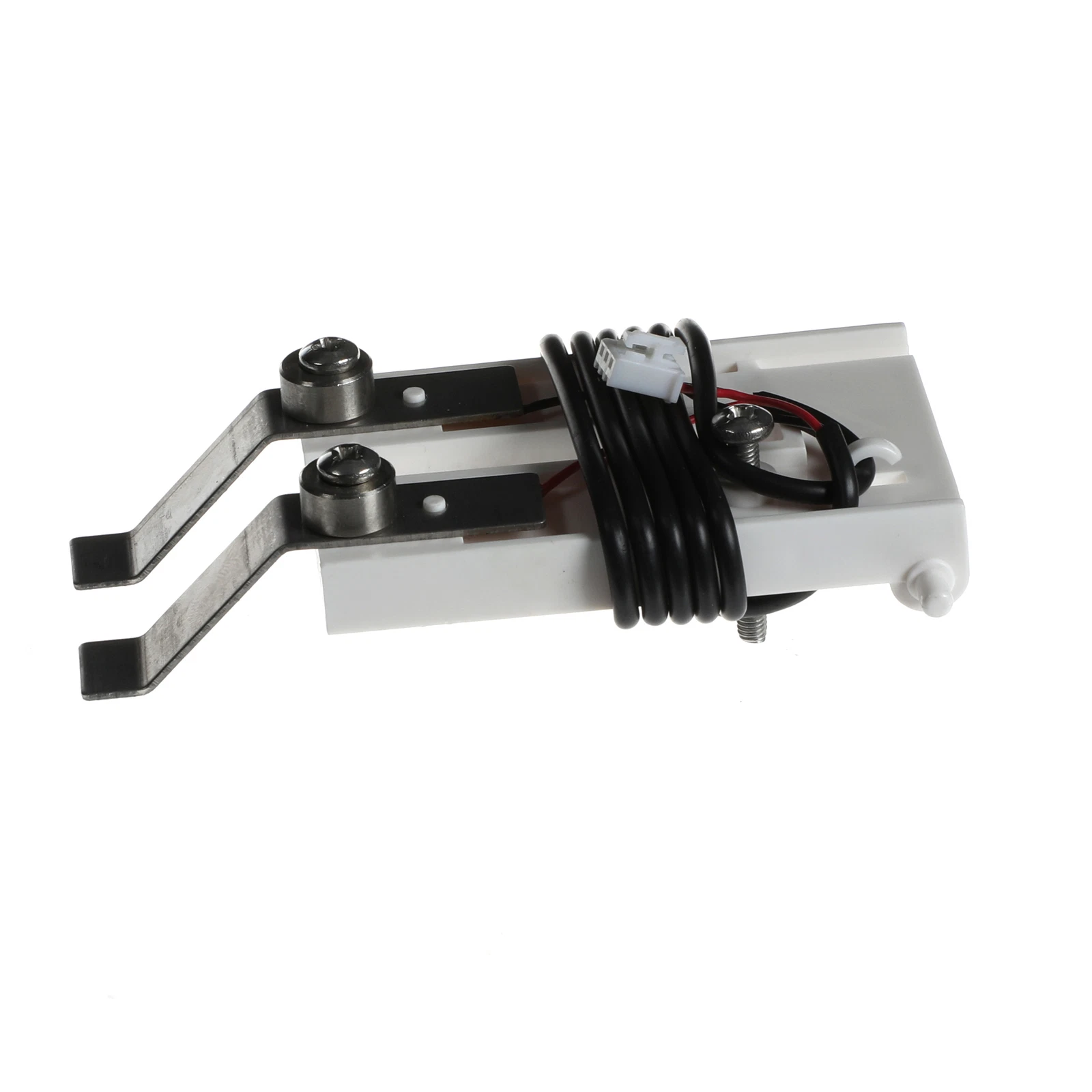

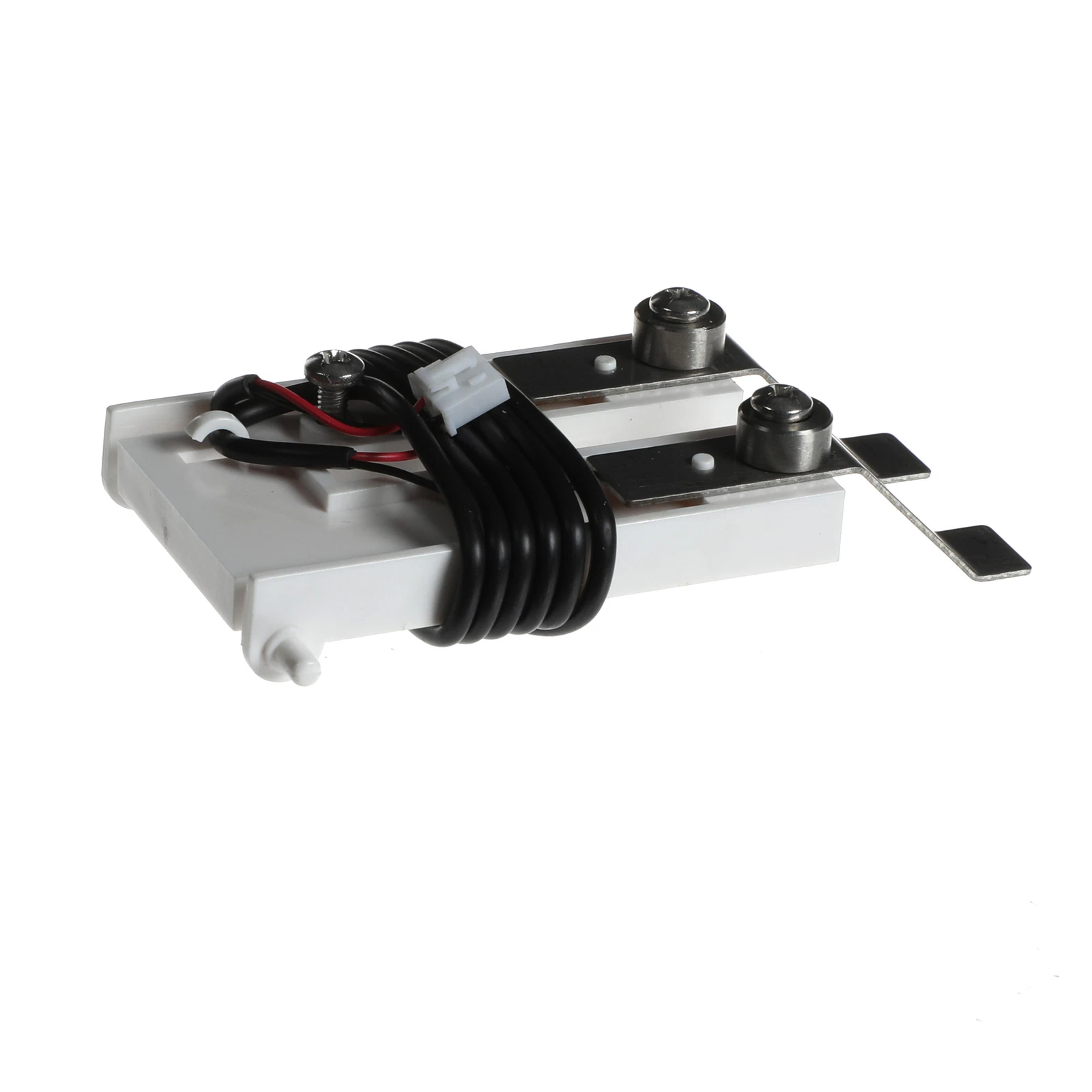

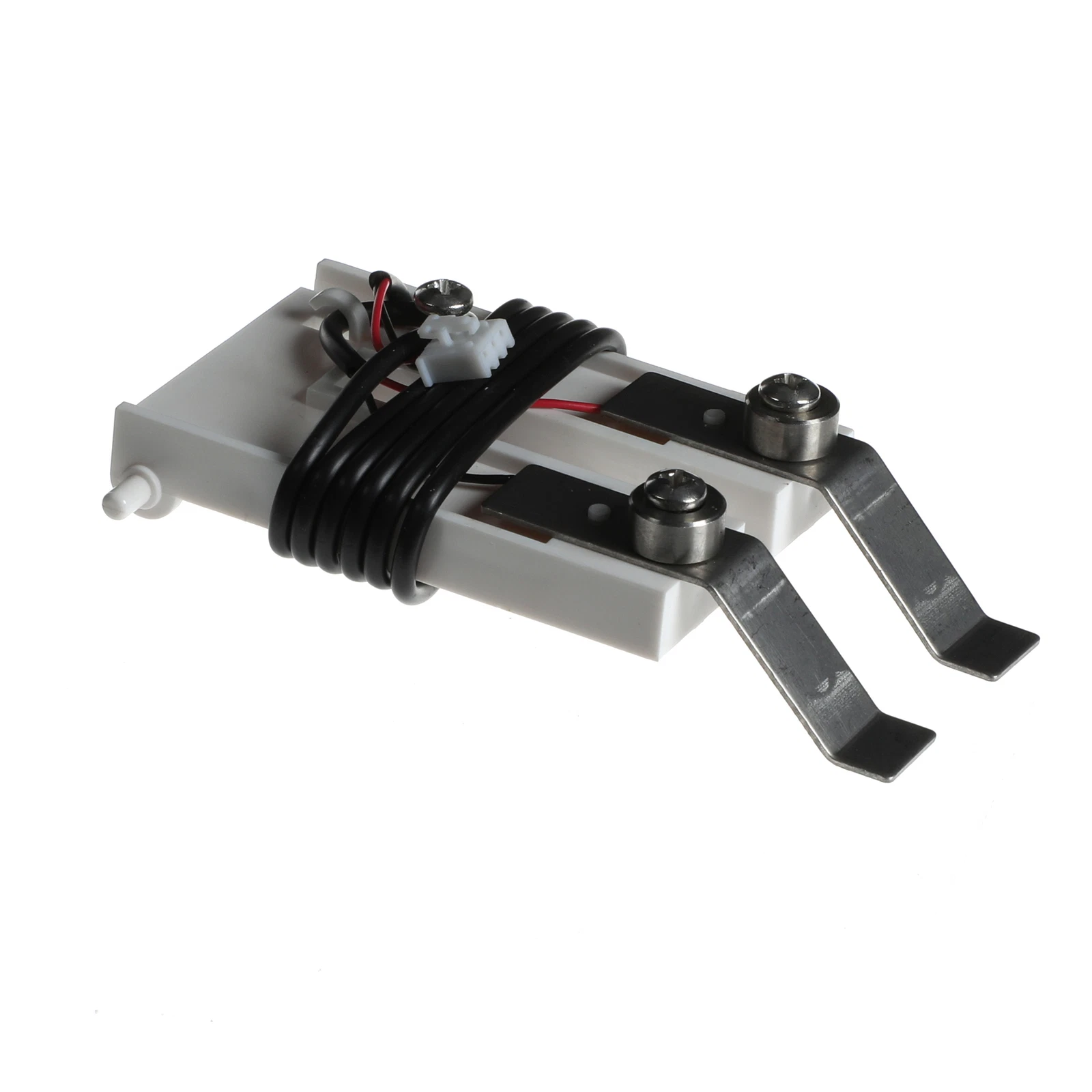

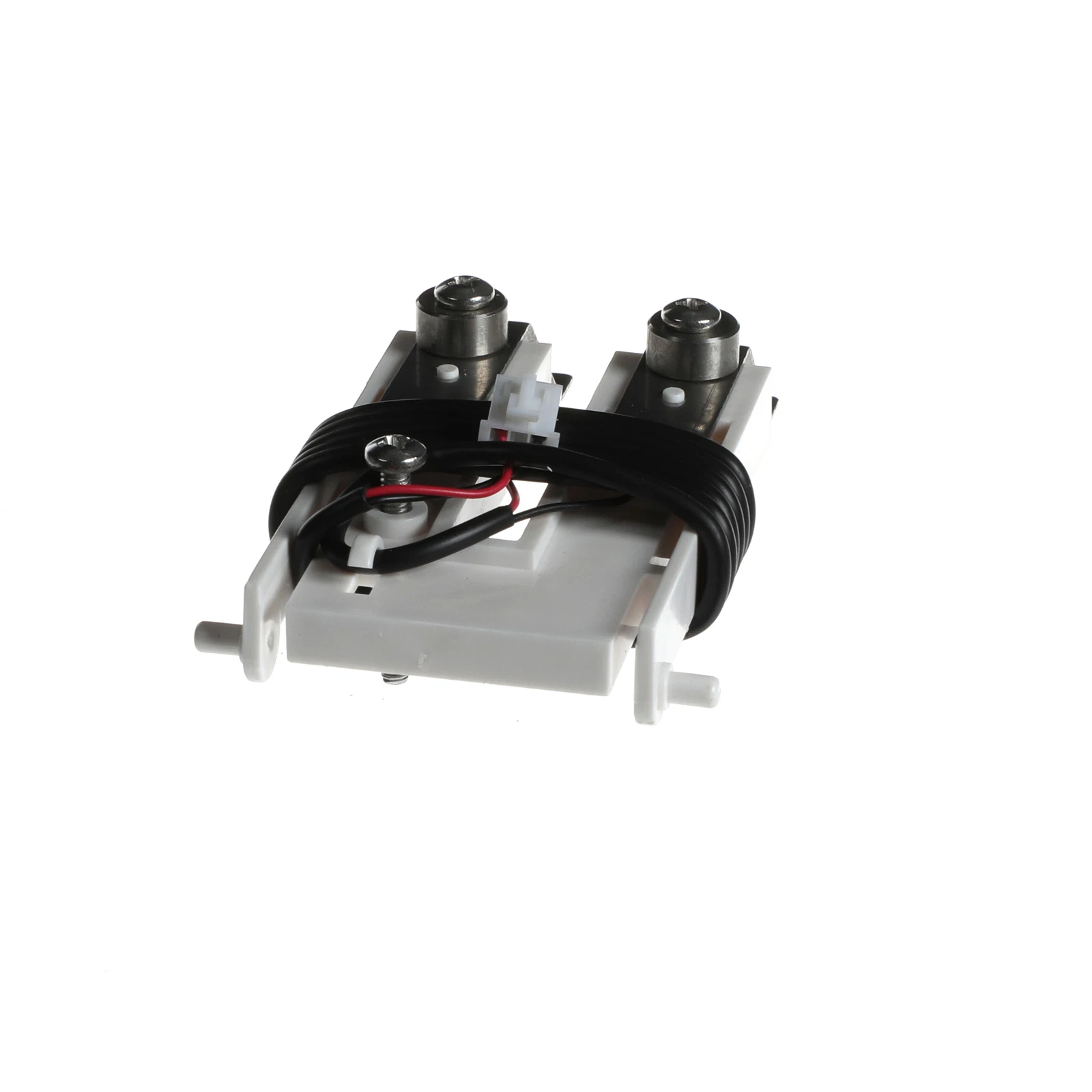

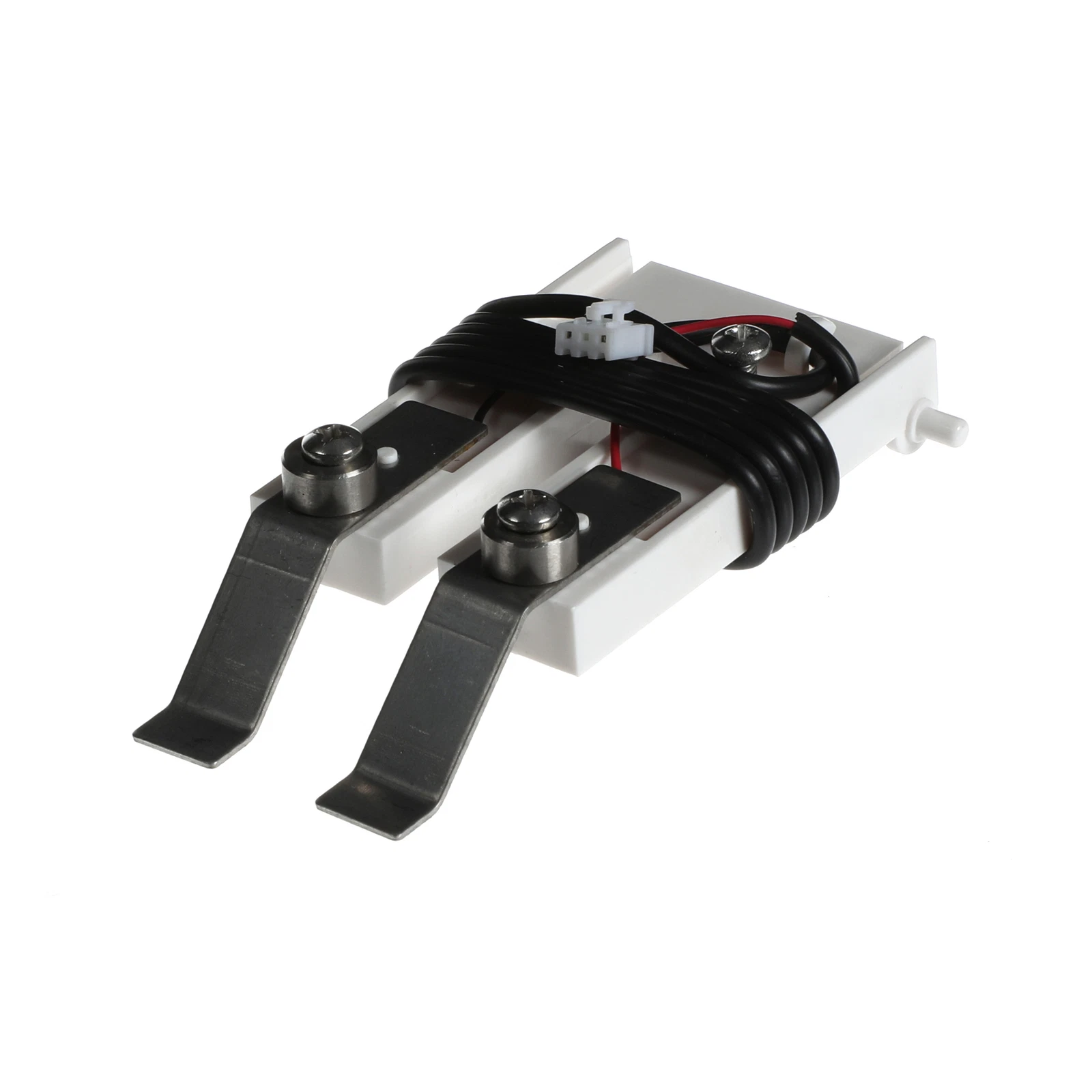

The Scotsman Ice Thickness Sensor SC98050106 (also listed as 98050106 or 98050106-00) is a genuine OEM replacement sensor assembly for select Scotsman commercial ice makers, particularly certain NW-series modular cube machines. It monitors ice bridge/slab formation on the evaporator and signals the control system to initiate the harvest cycle once the ice reaches the proper thickness.
Function and Operation
In Scotsman cube ice machines (including NW models), water cascades over a refrigerated evaporator plate, forming a sheet or “bridge” of ice that connects individual cubes. The ice thickness sensor (typically a metal probe or plate assembly positioned near the front of the evaporator) detects when this bridge has grown to the target thickness—usually around 1/8 inch (≈3 mm) or in the 3–5 mm range depending on the specific model and cube size (half-dice vs. full-dice).
Detection works via electrical conductivity: when ice (or the water film associated with it) bridges the sensor to the evaporator or completes a circuit, the controller receives a signal (often after a short confirmation period, such as several seconds of continuous contact). This triggers the harvest cycle—hot gas or other methods release the ice sheet, which breaks into cubes as it drops into the bin. Proper sensing is essential for consistent cube size, efficient production, and avoiding problems such as incomplete sheets, overly thick ice that fails to harvest cleanly, or short cycles that produce thin or incomplete ice.
Note that the sensor requires conductive water; non-conductive or highly purified water can impair operation. Scale buildup on the sensor tip is a common cause of faults and should be cleaned during maintenance.
