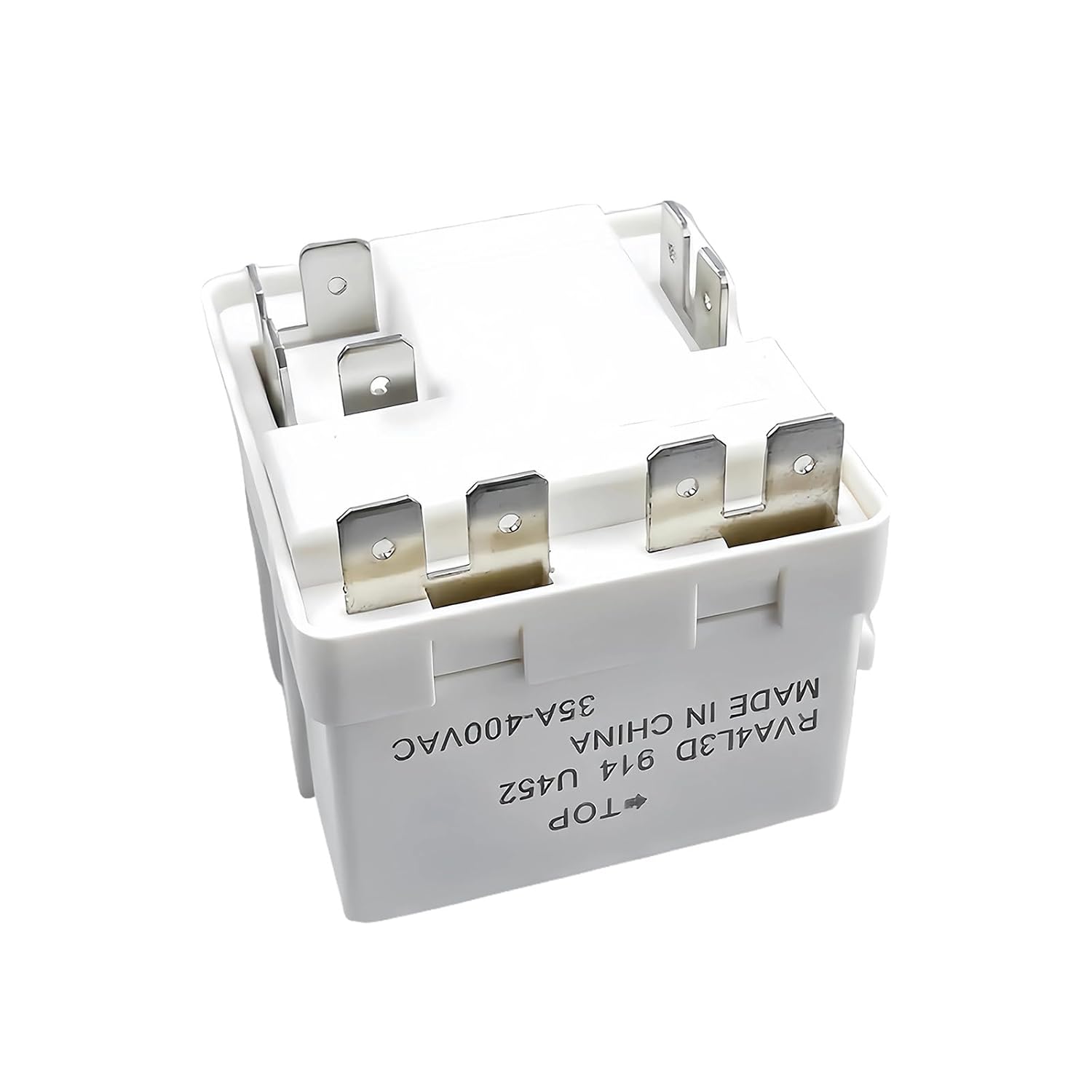

Start Relay Scotsman 620057-47 281026scam

Original price was: R5408,00.Current price is: R4300,00.

Shipping select: Small rate 250

Check stock and price first



2 in stock

Thank you for looking!

Need help? Whatsapp us at 073 035 4727

Rate this item

Click on a star to rate it!

Average rating 0 / 5. Vote count: 0

No votes so far! Be the first to rate this post.

As you found this post useful...

Follow us on social media!

Description

Start Relay 620057-47 is a genuine Scotsman OEM compressor start relay rated for 230 V / 50 Hz service. It is the part listed under catalog/position number 9 in the freezing-system (Gefriersystem) sections of Scotsman MF 56 (and closely related MFN 56) parts diagrams for both air-cooled and water-cooled versions.

Key Identification and Compatibility

  • Full designation: Relais – 230/50 (or Relais – 230/50 Gefriersystem Wassergekühlt / equivalent language variants).
  • Primary application: Scotsman MF 56 modular flaker / nugget ice machines (and related serial-number ranges such as those starting from S.N. 25653 in service documentation). It appears in the compressor start circuit alongside the start capacitor (typically 620167-00, 88-108 µF / 330 V) and thermal protector/overload (e.g., 620058-series).
  • Voltage/frequency specificity: 230 V / 50 Hz only. The 60 Hz counterpart is generally 620057-54. Using the wrong frequency-rated relay can prevent proper starting or damage the compressor.
  • Related / similar Scotsman numbers: The broader 620057-xx family includes variants such as F620057-42 (Relay 230/50), F620057-45 (compressor relay 230/50/6 or similar), F620057-59, and others used across Scotsman (and some Manitowoc-compatible) ice machines. Confirm the exact suffix against your machine’s parts list or wiring diagram—suffixes indicate voltage, frequency, or specific compressor matching.

It is also referenced in aftermarket listings as a start relay compatible with certain Manitowoc / Scotsman ice machines.

Function in the System

This is a potential (or current-sensing) start relay used with single-phase compressor motors. During start-up it momentarily connects the start winding (often in series with the start capacitor) to provide the necessary phase shift and torque. Once the motor reaches sufficient speed, the relay drops out, leaving only the run winding energized. Failure typically manifests as:

  • Compressor clicks or hums but does not start.
  • Repeated short-cycling or failure to build suction/discharge pressure.
  • Overload trips shortly after attempted starts.

It works in conjunction with the start capacitor and thermal protector. Always diagnose the complete start circuit (relay + capacitor + overload + wiring) rather than replacing the relay in isolation.

Sourcing and Practical Notes
