Description
(ideal for business use) Machine is new with a 1 year guarantee NW 608 Cube size: Half Dice (On Request) Dice (On Request) Large (Standard) Condensing system: Air cooled Water cooled Max daily production: 315 kg Dice cubes Dimensions (Head only): W 760 mm D 620 mm H 575 mm Recommended bins: B220/B320 -Productions shown are calculated at a temperature of 10 °C Ambient/10 °C Water Temperature Conditions.
Here’s a full overview of the Scotsman NW608 Ice Maker paired with the B220 Storage Bin:

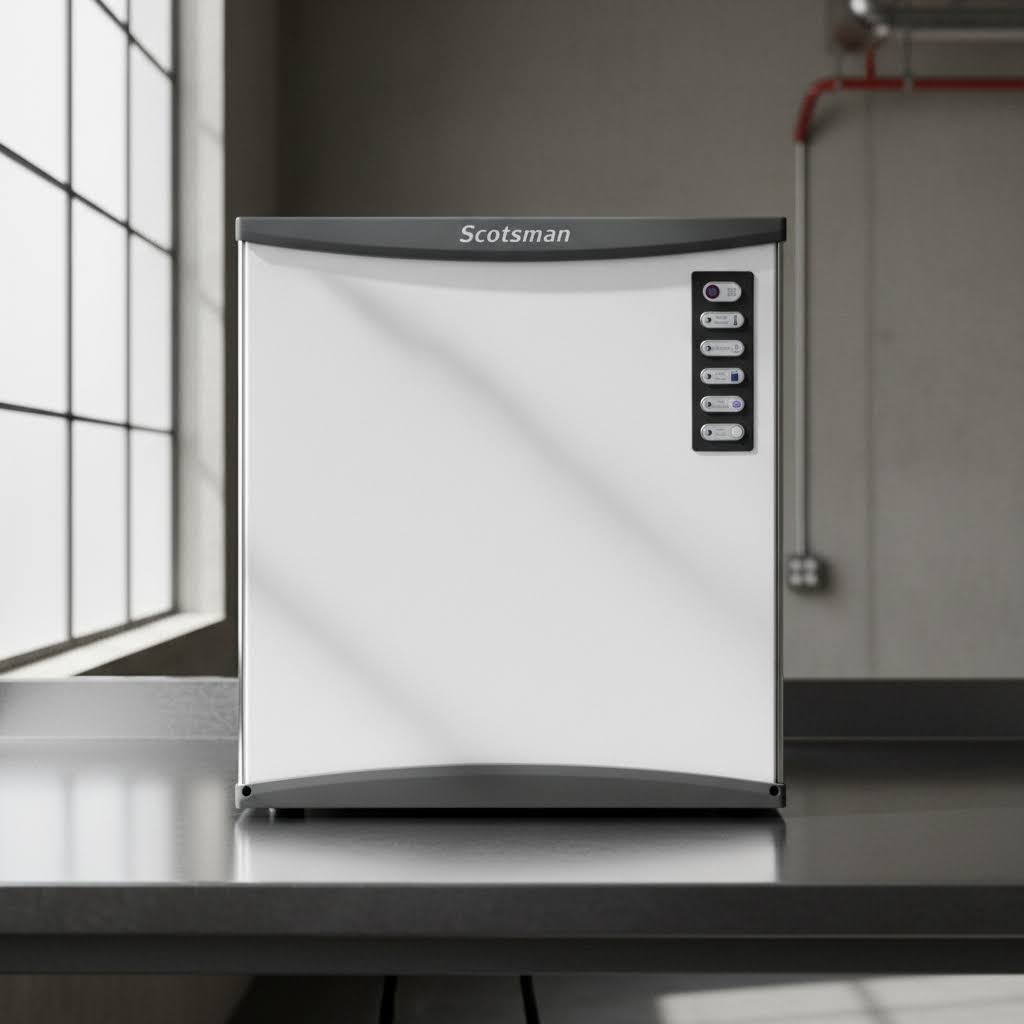

Scotsman NW608 — Ice Maker Head Unit
A modular dice ice machine that produces 315 kg every 24 hours, designed to be fitted to a separate storage bin. Ideal for busy cafés, coffee shops, hotels, and fast food outlets
Ice Cube Options
The NW608 can produce three different cube sizes:
- Dice — 22 × 22 × 22 mm, 10 g (standard)
- Half Dice — 10 × 22 × 28 mm, 6 g (on request)
- Large — 28 × 22 × 28 mm, 15 g (on request)
Key Specifications
- Max Daily Production: 315 kg (dice cubes)
- Condensing: Air-cooled or water-cooled
- Dimensions (head only): W 760 mm × D 620 mm × H 575 mm
- Recommended Bins: B220 / B320
- Production figures calculated at 10°C ambient / 10°C water temperature
Notable Features
- Global standard footprint — follows international imperial standards
- One-touch cleaning — reduces labour costs and simplifies maintenance
- Front evaporator access — quick self-maintenance
- Removable condenser air filter — easy cleaning
- Top exhaust airflow — hot air exits from the top, so no side clearance is needed
Built from T304 stainless steel panels; rated at 1.6 kW / 230V 50/60Hz, uses R404a refrigerant, and weighs 92 kg. Made in USA.
Scotsman B220 — Ice Storage Bin
- Storage Capacity: 190–220 kg (depending on ice type)
- Dimensions: W 800 mm × D 725 mm × H 1050 mm
- Compatible machines: MXG438 / NW458 / NW608 / MF36
Insulated and constructed from high-quality stainless steel, the B220 is durable, corrosion-resistant, and easy to clean. The well-insulated body helps maintain ice quality and reduces melting.
NW608 + B220 as a System
This is a well-matched pairing for mid-to-high volume operations. The machine produces up to 315 kg/day while the B220 holds up to 220 kg — keeping a substantial buffer on hand at all times. If your demand is closer to the full daily output, the B320 bin (260–320 kg capacity) is the alternative recommended option.
Typical applications include hotels, restaurants, bars, hospitals, and supermarkets. Would you like pricing, installation guidance, or a comparison with other configurations?
