Description

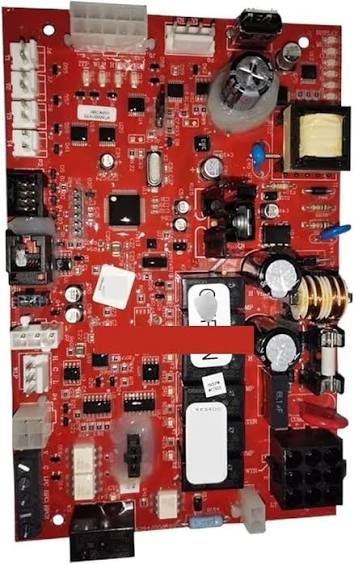

The Manitowoc 000008309 Control Board is the main electronic printed circuit board (PCB) designed for commercial Manitowoc Indigo Series ice machines.
Key Technical Specifications
-
OEM Part Number:
000008309 -
Equivalent / Cross-Reference Part:
000014150 -
Primary Function: Regulates core ice-making operations, including water fill cycles, freeze/harvest sequences, clean modes, and component timing signals.
-
Battery Requirement: Uses a CR2032 coin cell battery on the back of the motherboard to store data and retain memory settings.
Compatible Machine Families
-
ID Series (Dice Cube): ID0302A, ID0303W, ID0452A, ID0502A, ID0606A, ID0906A, ID1002A, ID1202A, ID1402A, ID1802A
-
IY Series (Half-Dice Cube): IY0304A, IY0454A, IY0504A, IY0606A, IY0906A, IY1004A, IY1204A, IY1404A, IY1804A
-
IR Series (Regular Cube): IR0500A, IR0520A, IR0906A, IR1800A
-
I-Series Modular Units: I0300, I0450, I0500, I0600, I0850, I1000, I1200, I1400, I1800
Installation Note Always isolate electrical power to the machine before removing the old control board. It is recommended to label or photograph all wiring pin connectors prior to removal to ensure proper re-connection.
