Water pump Scotsman ice/EC/NW 620433-00 MH30F1 201026sc

Description

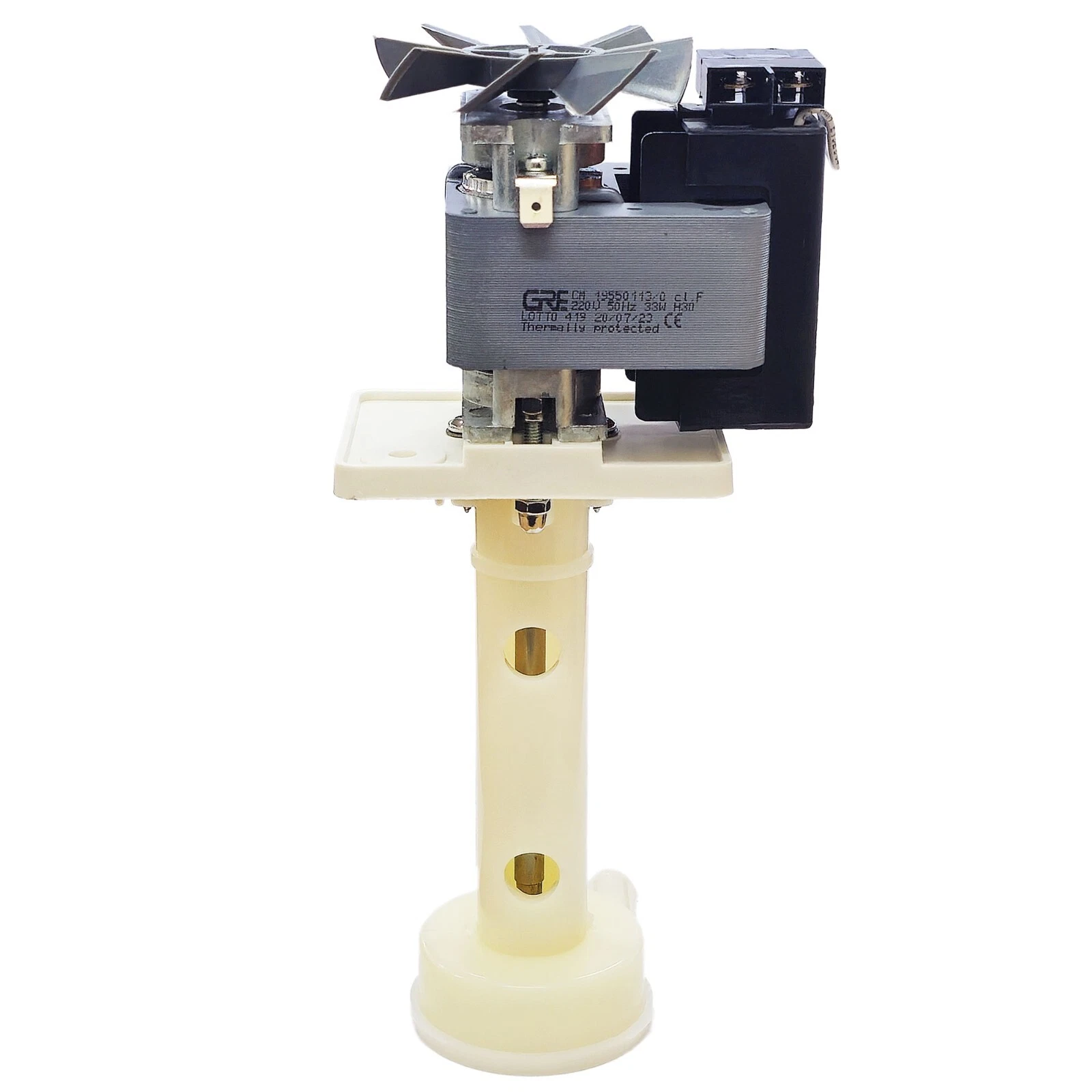

Scotsman (and related brands) water pump / circulation pump, part number 620433-00 (also listed as 62043300, 620433-00, F620433-00, 620433.00, etc.), manufacturer model Rebo MH30F1 (or MH30 F1 / MH 30 F1).

Key Specifications

• Type: Circulating (or in some descriptions, drain-related) water pump for commercial ice makers. It moves water over the evaporator plate to support consistent ice formation, size, clarity, and production cycles. Failure typically causes low/no water flow, incomplete ice, or related sensor/cycle issues.
• Power: 30 W (some listings note ~33 W).
• Voltage / Frequency: 220–240 V, 50 Hz (European/UK/South African standard; not 60 Hz/US versions).
• Outlet diameter: Typically 13 mm.
• Length: Approximately 135 mm.
• Rotation: Often specified as left-hand (LH) or “left” in multiple sources; a few listings note right—confirm against the original unit’s direction and mounting.
• Other: Includes thermal protector in some versions. Supplied pumps may be Rebo (black) or GRE (grey); they are described as interchangeable genuine/OEM-equivalent Scotsman parts. Weight is roughly 1.1–1.5 kg.

Compatible Models (common listings)

Primarily Scotsman undercounter/modular and related commercial ice machines, including:

• AC series: AC25, AC45, AC46, AC47, AC55, AC56, AC57, AC85, AC86, AC87, AC105, AC106, AC107
• EC series: EC45–EC47, EC55–EC57, EC85–EC87, EC105–EC107
• ICE ONE / ICE TWO / ICE THREE
• Various MV, MAR, NW, DX, BI, CD models and equivalents from Icematic, Simag, Angelo Po, Barline, and related brands (e.g., some Electrolux/Zanussi/Faema overlaps)
• Cross-references also appear as 19550113, 3122010, 620433-08 / 08R, 620423 variants, SC620433, etc.

Always verify the exact model, serial, voltage, and physical mounting/rotation of your machine against the old pump or the manufacturer’s parts diagram—ice machine pumps are not always universal even within the same brand family.

Notes on Replacement and Use

• Confirm voltage (50 Hz / 230 V class) and rotation direction before ordering.
• Inspect mounting, hose connections, and seals; clean the water system and check for scale or debris that may have contributed to pump failure.
• After install, run a full cycle and check for leaks, proper flow over the evaporator, and normal ice production.
• This is a common service part for Scotsman undercounter and similar modular units in 50 Hz markets.
